Ultra Flexible Transparent PDMS Film Sheet for Microfluidic Devices Sensors and Flexible Electronics

Features

1. Excellent Optical Transparency

High light transmission and optical clarity make PDMS film suitable for optical observation systems and microfluidic visualization applications.

2. Outstanding Flexibility and Elasticity

Highly stretchable silicone structure enables repeated bending, compression, and deformation without cracking.

3. Wide Temperature Resistance

Maintains stable performance under wide temperature ranges (-40℃~200℃), suitable for demanding industrial environments.

4. Chemical and Weather Resistance

Excellent resistance against moisture, oxidation, UV exposure, and many chemicals.

5. Biocompatible Material

Non-toxic silicone material suitable for biomedical and laboratory applications.

6. Excellent Electrical Insulation

Provides reliable dielectric insulation performance for electronic and sensor applications.

7. Low Surface Energy

Hydrophobic surface characteristics provide excellent release performance and anti-sticking properties.

8. Easy Microfabrication

Compatible with soft lithography, molding, plasma bonding, and microstructure replication processes.

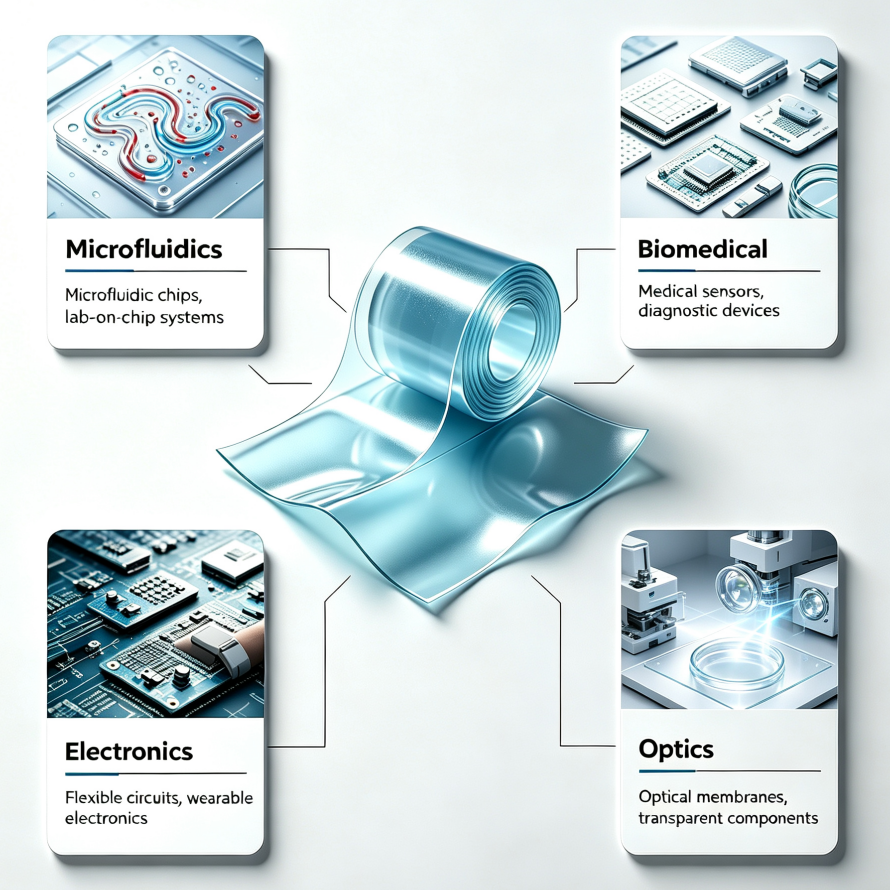

PDMS film sheets are widely used in advanced technology fields requiring soft, transparent, and chemically stable materials. Their unique combination of elasticity, optical clarity, and biocompatibility makes them an excellent choice for precision applications.

Typical applications include:

1. Microfluidic chips and lab-on-chip devices

2. Biomedical diagnostic devices

3. Flexible pressure and strain sensors

4. Optical membranes and lenses

5. Dielectric elastomer actuators

6. Wearable electronic devices

7. Flexible displays

8. Protective coatings and membrane
