High Purity and Pliability Electrcial Crepe Paper For Oil-filled Transformers

Short Description:

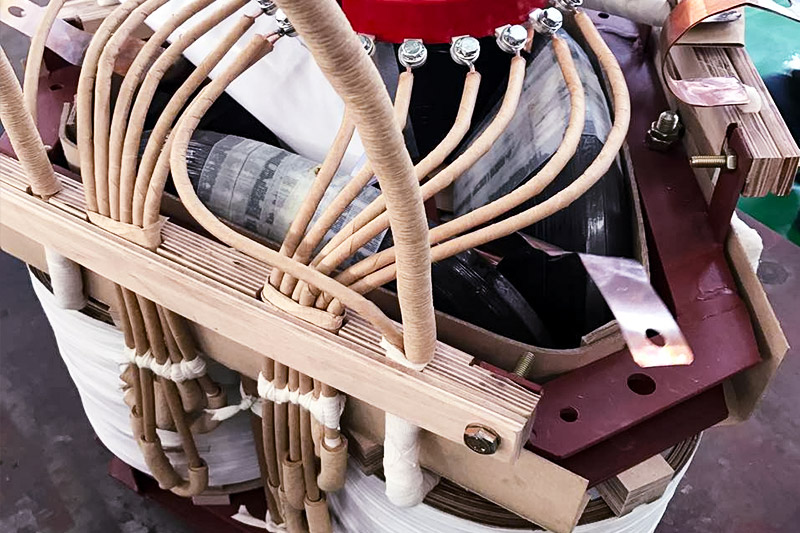

GBS’s transversely Crepe Paper Tube has high absorption rate of oil and good dielectric strength which makes it extensively used especially in oil immersed transformers, instrument transformers, reactors and other parts of package insulation, especially as lead parts of the insulation package, thereby improving the electrical insulation and mechanical properties of the product structure.

Using these insulating sleeves will provide superior insulation and heat dissipation, thereby helping to extend the lifespan of transformers.

Our crepe paper uses different base paper and various crepes for easier assembly, meets requirements for different dimensions.

Send email to us

Product Detail

Product Tags

High Purity and Pliability Electrical Crepe Ppaer for Oil-Filled Transformers

Features

1. Made from 100% sulfate wood pulp;

2. Class "A" insulation (105 °C);

3. Flexible size: different ID and OD as per client needs;

4. 300% more strength in mechanical and cross mechanical directions, more resistant to breakage;

5. Crepe surface means greater surface area which helps to retain more oil and hence lowers the working temperature of the transformer compared to kraft paper;

6. Color: natural brown, beige;

7. Manufactured using longer fibers of pure wood pulp.

Standard: JB/T 10441.3-2004
No.	Properties		Unit	Base Paper Thickness
				0.05mm		0.075mm		0.13mm
1	Thickness of Crepe Paper		mm	0.35±0.05		0.38±0.08		0.70-0.90
2	Ash Content		%	≤0.7		≤0.7		≤0.8
3	Moisture Content		%	≤7.0		≤7.0		≤8.0
4	Water Extraction PH		-	6.0-8.0
5	Oil Contamination		%	<0.1
6	Tensile Strength	MD	N	30		40		50
		CD	N	20		30		40
7	Oil Absorption Height	MD	mm/10min	≥7.0
			mm/60min	≥30.0
		CD	mm/10min	≥20.0
			mm/60min	≥50.0
8	Crepe Ratio		%	50
9	Power Frequency Breakdown Voltage		V/layer	≥950	≥1000		≥1000
10	Conductivity		ms/m	-	-		≤10
11	Appearance density		g/m²	60±10%	110±10%		120-150
